Project Description

COLD FLYING SAW 165

  • 1.smooth running & high precision cutting

  • 2.lower noise & safety
  • 3.superior cutting edge,no burrs & save costs

  • 4.Lower noise, burr-free cutting, more safety for operator, save costs and material.
  • 5. Running in a high automatization and intellectualization,no pollution
  • 6.New Function: Remote Control system, solve problem in time.

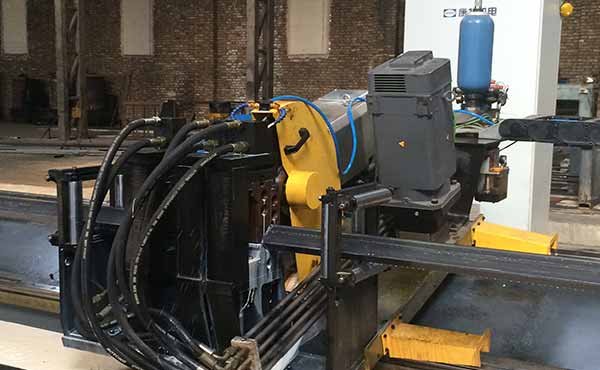

CTC 165 cold flying saw
Technical Para meter
Material Carbon steel
Tensile strength <400N/mm2
Pipe Size Round pipe 76-168mm
Square pipe 60-130mm
Rectangle Pipe 90*180
Wall thickness 2.0~8.0mm
Cutting length <32m continuous adjusting
Speed 70m/min
Servo/AC Motor Drive motor Yaskawa/Siemens
Futting motor Yaskawa/Siemens
Cutting motor Yaskawa/Siemens
Motion Control Contor CT-II/Siemens
Saw Blabe HSS/TCT

This cold saw was designed for our South Korea Customer, in the video, we can see the speed of this cold saw. Pipe OD is 31.8 mm. This video was taken many years ago.

The equipment is designed and manufactured utilising the lastest in mechanical and electrial technologies.

Contor products specialises in machine and system design, manufacturing, installation and commissioning of equipment for tube cutting industry and has been providing tube cutting solutions to the market leaders in the tube manufacturing field for more than 20 years.we also offer a wide rang of pipe handling equipment in customised layouts to meet customer requirements.

8mm round tibe, 10*10-30*30mm square tube, Max 15*25mm rectangle tube, thickness 0.6-2.3mm. For 13mm round tuhe with 0.6mm tube the cold saw max speed can up to 140m/min.

NAME: Motion Controller

Brand: CONTOR
Original: CHINA

Based on more than 20 years tube cutting experience,we developed it ourselves. From Friction controller CT-01 to the lastest New one CT-III. Different pipes with different parameters.

Name: Servo Motor

Brand: Siemens
Original: Germany
Different pipes equipped with different size servo Motor,  Yaskawa servo motor is avaliable as well. Usually, we adopts Yaskawa motor and Driver.

Name: Saw Blade

Brand: Kinkelder/Julia and so on.
Original: oversea’s brand
Equipped  two blade with the Equipment as free.

Name: Encoder

Brand: OMRON
Original: Japan
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

CONTOR  FAQ

Generally it is 60 days after we received the advanced payment

No, we could introduce you the tube mill manufacturers

we accept the 30%T/T in advanced and 70%T/T or L/C payment

Our Service

Assigned professionals to guide the installation on site;Warranty period of one year;Remote control function assists in troubleshooting in real time;Have CE certificate can issue certificates such as CO;Accept T/T L/C payment, Ali payment
